Air Handling Systems Manifolds are designed for optimum airflow. All Manifolds are fabricated to industrial standards, including being fully welded creating an airtight seam for improved performance. Other styles have inefficient airflow and require additional ceiling height.

The combinations of multi-tap configurations are limitless due to various dust port locations. We can easily provide a quote on a Multi-Tap Manifold, we just need a sketch with the following information to provide an accurate quote.

Ideal for single-sided automatic edge banders such as: SCM Stefani or Olimpic k 560, HOLZ-HER Tectra 6120 horizontal panel beam saw, HOMAG equipment, Biesse America, Akron 1100 edge bander, Timesaver wide belt sanders, and other larger woodworking equipment.

To provide a quote for a multi-tap manifold we need the following: A sketch of the manifold. On the sketch, designate the A & B diameter. Then, designate the placement and diameter of each tap (C, D, E, F, etc.). Provide measurements from small-end (B) to the start of each tap. Email drawing to sales@airhand.com or fax to 203.389.8340

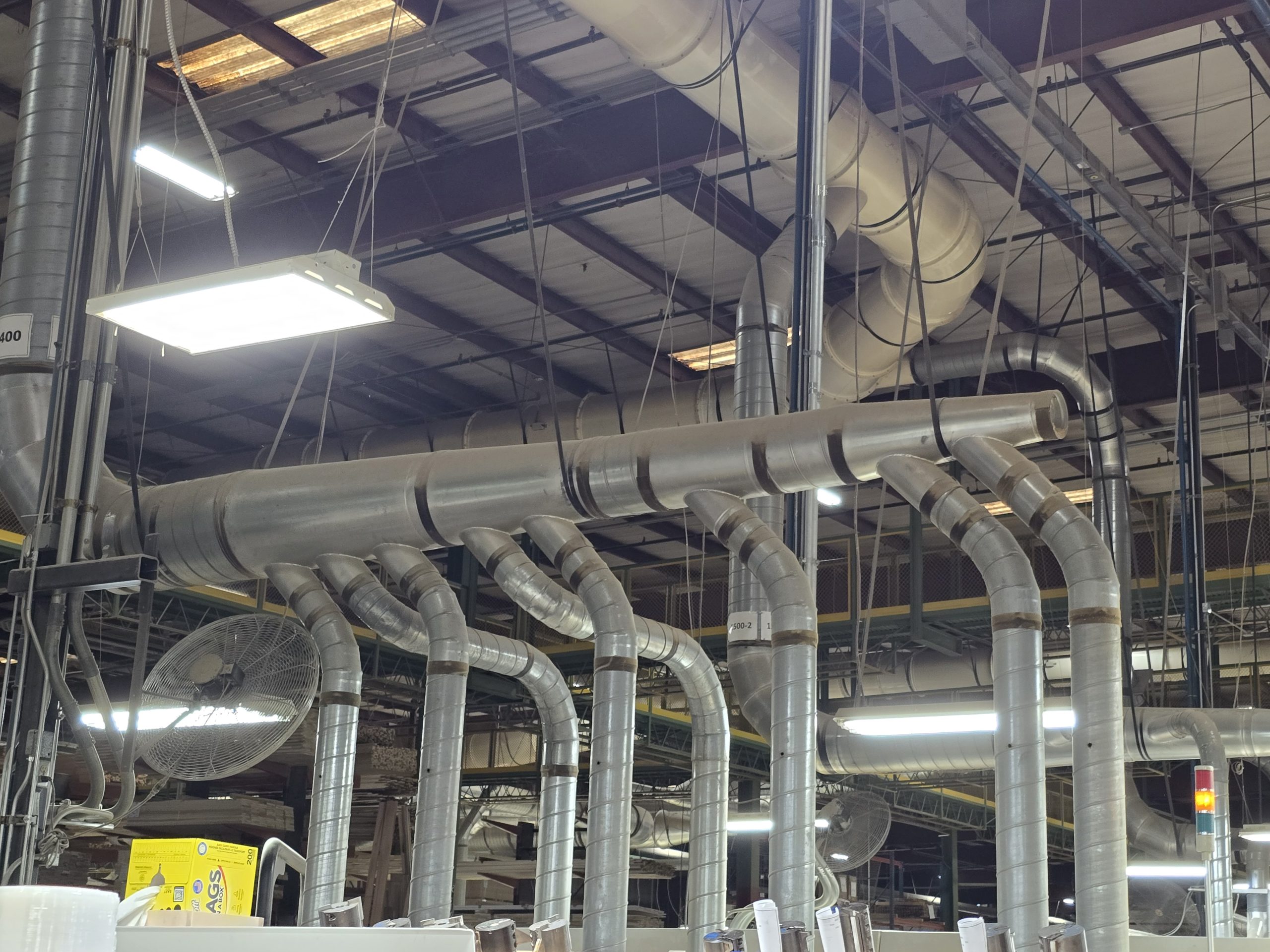

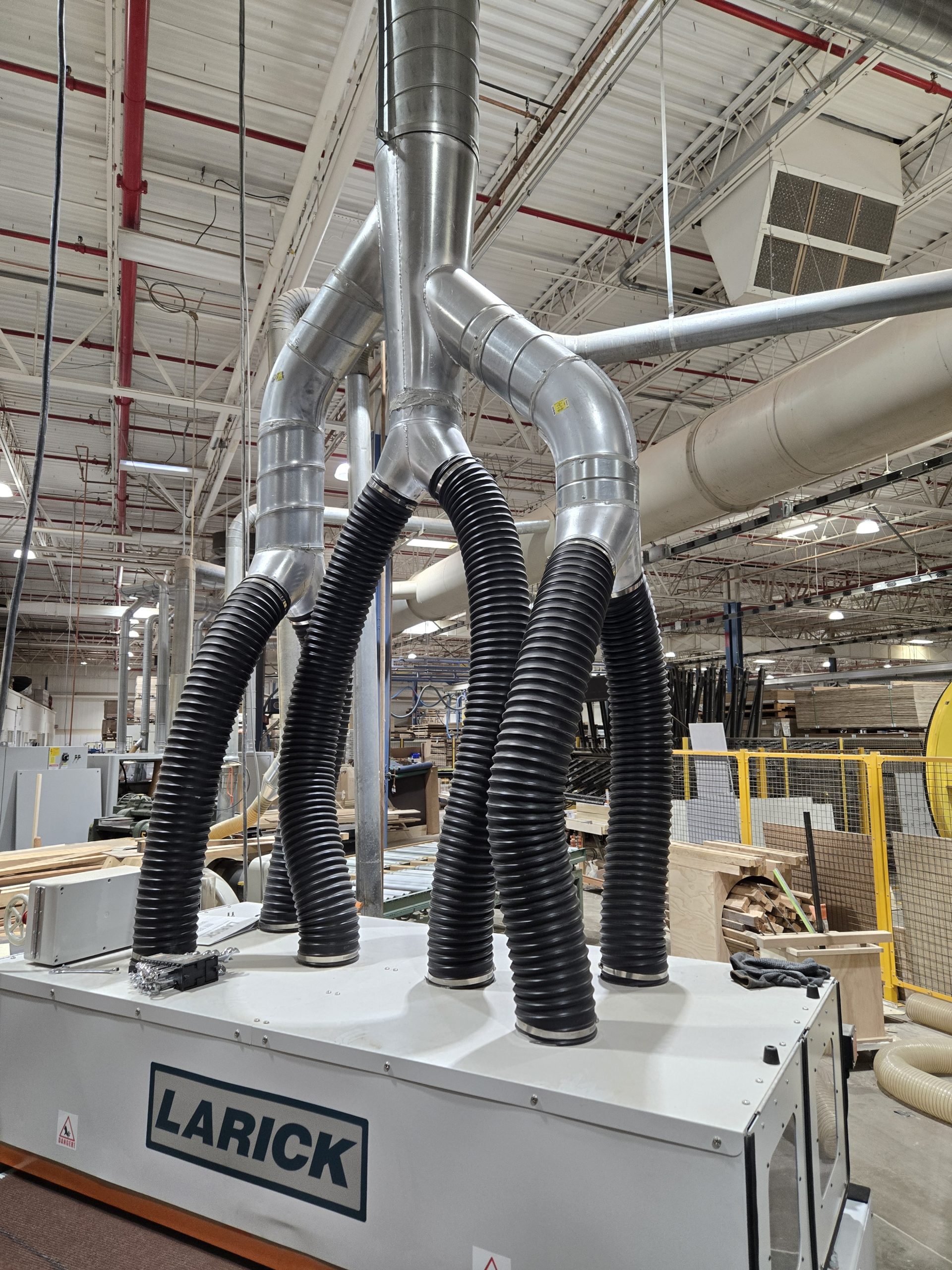

To see various sample multi-tap manifolds, mouse over the top image to left and click the arrow.

For more info click here: AHS Cut Sheet Manifold.

SKU: *CUMANIFOLD Category: Manifolds

Description

Air Handling Systems Multi Tap Manifolds are designed for optimum airflow. All Manifolds are fabricated to industrial standards, including being fully welded creating an air tight seam for improved performance. Other styles have terribly inefficient airflow and require additional ceiling height.
The combinations of multi-tap configurations are limitless due to various dust port locations. We can easily provide a quote on a Multi-Tap Manifold, we just need a sketch with the following information to provide an accurate quote, or simply fill in information as requested in this document.

1. Provide a simple sketch of the manifold. We have provided several examples for you to reference, if one meets your needs simply fill in the specific dimensions and additional information.
2. Verify path of main duct approaching machine.
3. Designate the A & B diameter. End collars are male and 2″ long.
4. Designate the placement and diameter of each branch (C, D, E, F, etc.). All branches are male end for flexible hose or spiral pipe to slide over, unless otherwise specified on the drawing.
5. Provide measurements from the small end (B) to the start of each tap.

Additional Notes:
Branch can be on either side of the tapered body.
ALL branches at 45 degree, unless otherwise specified on the drawing.
For metric, simply convert metric size to closest inch. For example 110mm = 4 11/32″, round up to 5″. We can fabricate a custom adapter for machine outlet converting 110mm to 5″ to fit flexible hose. We can also provide with metric taps to accommodate our metric flexible hose.

Provide measurements from small-end (B) to the start of each tap. Email drawing to sales@airhand.com or fax to 203.389.8340

To see various sample multi tap manifolds, mouse over top image to right and click arrow.
